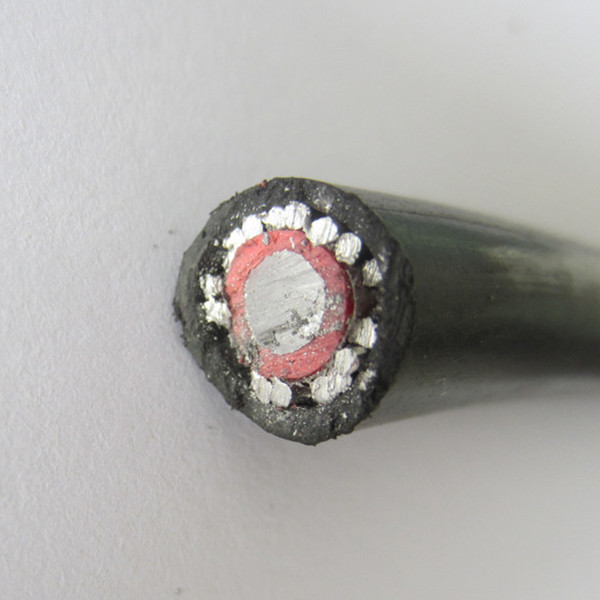

Solid 4.35mm Aluminium Cable 16 sqmm with Aluminum Wire Armour With PVC XLPE Insulation
1 Applications
The concentric cable is used as electric service entrance from the power distribution network until the meter panel (especially where it is required
to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as
it is specified in the National Electrical Code.
This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 70 ºC and its
voltage of service for all the applications is 600 V.
Standards
IEC BS and so on
Voltage:
600/1000V
Concentric Cable Construction
Conductor
Aluminum conductors, IEC 60228, solid or stranded versions, conductor types
10-16 mm² round, solid conductors.
10-25 mm², stranded conductor.
35-240 mm², sector shaped conductor, stranded
Insulation
PVC(Polyvinyl Chloride ) or XLPE
Inner Sheath
PVC(Polyvinyl Chloride)
Concentric Conductor
Aluminum wires
Sheath
PVC(Polyvinyl Chloride)
Minimum Bending Radius
Single Core: 15* overall diameter
Multi Core: 12* overall diameter
| ITEM | SPECIFICATION (PARTICULARS | UNIT | Data |
| 1 | Standard | | IEC 60502/228/1089/ES 109-7 |
| 2 | Voltage | kV | 0.6/1 |
| 3 | Phase Conductor material | | Hard drawn Aluminium conductor |
| 4 | Number of core | Nos | 1 |
| 5 | Number of strands | Nos | 1(Solidal) |
| 6 | Conductor Size | mm2 | 16 |
| 7 | Diameter of wire | mm | 4.35 |
| 8 | D.C Resistant at 20°C | Ω/KM | 1.91 |
| 10 | Insulation Resistance at 20°C (Min) | MΩ/KM | 5 |
| 11 | Current Carrying Capacity in Air at 25°C | A | 60 |
| 12 | Insulation Material | | PVC or XLPE |
| 13 | Insulation Thickness | mm | 1.0 |
| 14 | Sheath Material | | Black PVC |
| 15 | Sheath Thickness | mm | 1.2 |
| 16 | Earth wire | | |
| 16.1 | Material | | Aluiminum |
| 16.2 | Number & Dia of wire | Nos/mm | 20/1.0 |
| 16.3 | Overall Diameter of cable | mm | 11.95 |
| 17 | Core Identification | | Red |
| 0.6/1kV 1+1-core Cu(Al)/PVC/PVC Concentric Conductor Cable |
| Nominal cross sectional area of conductor(mm2) |
| 1×10+1×10 |
| 1×16+1×16 |
| 1×25+1×25 |
| 2×10+1×10 |
| 2×16+1×16 |
| 2×25+1×25 |
