Brand Name : Yifangcable
Model Number : HTA torsade cable
Certification : CE ISO KEMA UL BV
Place of Origin : China
MOQ : 1km
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 300km/month
Delivery Time : 5-8work days

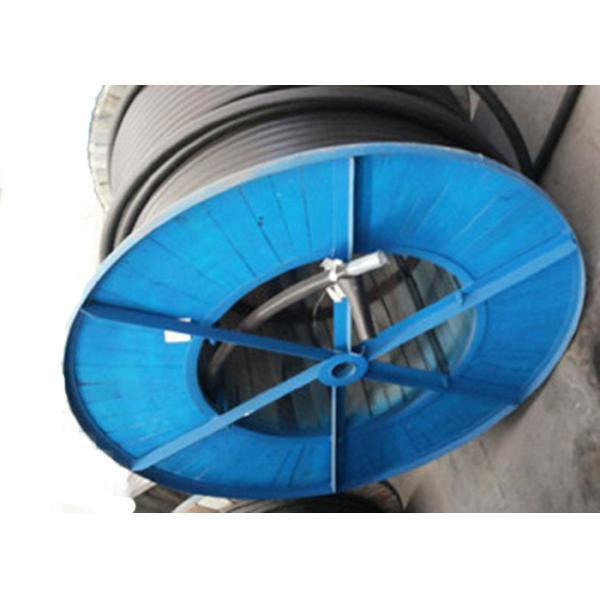

Packaging Details : Wooden Steel Drum 2.2x1.45x2.2M
Code : Câble HTA Torsadé Souterrain
Rated Voltage : 18/30/36KV
Size : 1x50, 1x150, 3x185, 3x240
Material : Aluminum
Standard : NFC 33 226
Product : Alu Câble HN33S26
Câble HTA Torsadé Souterrain 18/30/36KV NFC 33 226 1×50 mm² Alu Câble HN33S26
DESCRIPTION |
Utilisation |
Le câble MT NFC 33-226 est destiné à la distribution publique moyenne tension HTA 12/20 kV. |
Il peut être constitué de 1 ou 3 conducteurs de phase. |
L'étanchéité longitudinale est assurée par une poudre gonflante. |
La technologie de sa fabrication permet de le poser sans protection mécanique supplémentaire. |
Norme : NF C 33 226, IEC 60502-2 |
TECHNICAL DATA SHEET | |||
Câble HN33S26-18/30kV 1x50mm² Alu NF C 33 S226 | |||
No. | Description | Unit | Specification |
1 | Reference standard | / | NFC 33-226,IEC 60502-2 |
2 | Rated voltage | KV | 18/30 |
3 | Number of individual cores | / | 1 |
4 | Nominal conductor area | mm2 | 50 |
5 | Material of conductor | / | Compacted circular aluminum |
Number of strands | / | Min.6 | |
Diameter of conductor | mm | 7.7~8.6 | |
Max.conductor D.C resistance at 20℃ | Ohm/km | 0.641 | |
6 | Material of conductor screen | / | Semi-conducting compound |
Nominal thickness of conductor screen | mm | 0.7 | |
7 | Material of insulation | / | XLPE |
Nominal thickness of insulation | mm | 8.0 | |
8 | Material of insulation screen | / | Semi-conducting compound,longitude with grooves, and sealing powder over it |
Nominal thickness of insulation screen | mm | 0.8 | |
9 | Metallic screen layer | / | Longitude aluminum plastic tape |
Thickness of aluminum tape | mm | Min. 0.2 | |
10 | Outer sheath material | / | Black PE |
Nominal thickness | mm | 2.0 | |
11 | Approx. overall diameter of the cable | mm | 32.5 |
12 | Approx. weight of the cable | Kg/km | 930 |
![]() |
Câble HTA Torsadé Souterrain 18/30/36KV NFC 33 226 1×50 mm² Alu CIS Câble HN33S26 Images |
