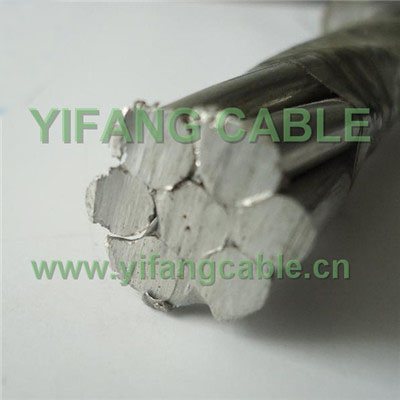

34.4mm2 Overhead Aluminium Alloy Almelec Cable With 7,19,37,61,91 Strands
Quick Details
· Place of Origin: Henan, China (Mainland)
· Brand Name: Zhengcable
· Model Number: almelec cable with 7,19,37,61,91strands
· Insulation Material: none
· Type: HV MV LV
· Application: Overhead
· Conductor Material: Aluminium alloy
· Jacket: None
· advantage: Resistance chemical corrosion
· advantage1: anti heat-ageing,environment stress
· advantage2: light in weight
· advantage3: especially for laying across
DESCRIPTION
Utilisation
Ces Câble almelec font preuve de nombreux
avantages : la légèreté, une charge de rupture haute permettant de longues portées,la simplicité des accessoires et enfin le recyclage facile. Ces conducteurs conviennent aux réseaux de longue portée.
Mode de pose
A l'air libre
Norme : NF C 34- 125, EN 50182, IEC 61089
Packaging & Delivery
| Packaging Details: |
wooden drum;wooden_iron drum;iron drum. |
| Delivery Detail: |
sample(3d);in stock(10d);general cargo(15d);OEM/ODM(20d) |
Product Description
All aluminium alloy conductor, aaac cable with BS,ASTM,DIN,IEC standard
1 Description of aaac cable
Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size.
| ITEM |
DESCRIPTION |
UNITS |
OFFER BIDDER |
| 1 |
manufacturer |
‐ |
Zhengzhou yifang cable co.ltd |
| 1.1 |
Type Model No |
‐ |
Almelec 34.4mm2 |
| 1.2 |
Country of origin |
‐ |
China |
| 2 |
Structure |
‐ |
|
| 2.1 |
nominal section |
mm² |
34,4 |
| 2.2 |
Number |
no. |
7 |
| 2.3 |
Nominal diameter Diameter of single wire |
mm |
2, 5 |
| 2.4 |
Conductor diameter |
mm |
7,5 |
| 3 |
MECHANICAL PROPERTIES AND ELECTRICAL |
|
|
| 3.1 |
Mass per unit length of the cable |
Kg/Km |
93 |
| 3.2 |
Breaking load |
daN |
1105 |
| 3.3 |
Modulus of elasticity |
Hbar |
6000 |
| 3.4 |
Resistance at 20 ° C |
Ohm/km |
0,958 |
| 4 |
Standards |
|
NFC 34-125 IEC 61089 |
